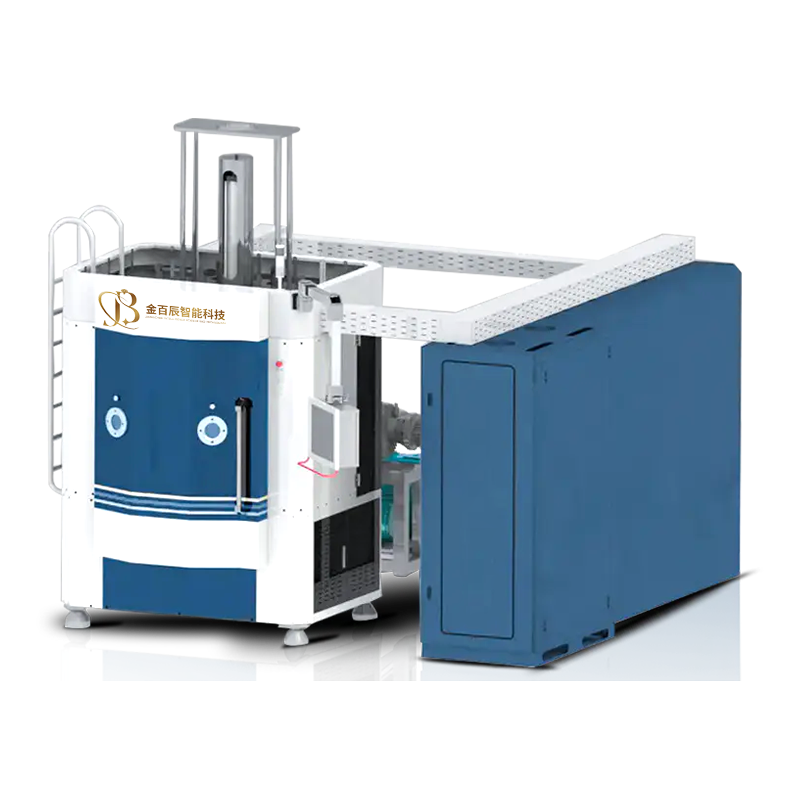

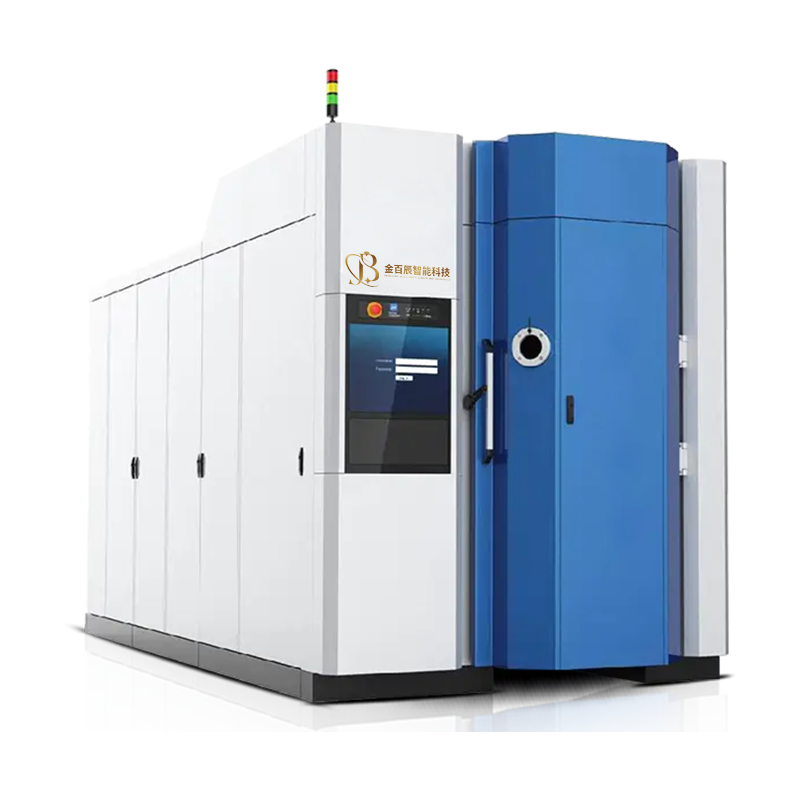

Vacuum Coating Equipment for Cutting Tools

  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
  • Vacuum Coating Equipment for Cutting Tools
PREV：No previous articleNEXT：No next article

The vacuum coating equipment for cutting tools is engineered to significantly enhance surface hardness, reduce friction, and extend the operational life of cutting and forming components. By applying advanced hard coatings, this system increases wear resistance, decreases thermal stress, and boosts the overall efficiency of tools in high-speed or high-load applications.

One of the key advantages of this equipment is its ability to reduce frictional losses, which not only improves power transmission efficiency but also helps lower the thermal load on systems like engines or high-speed machinery. Additionally, the coated tools exhibit improved emergency performance and operational reliability under working conditions.

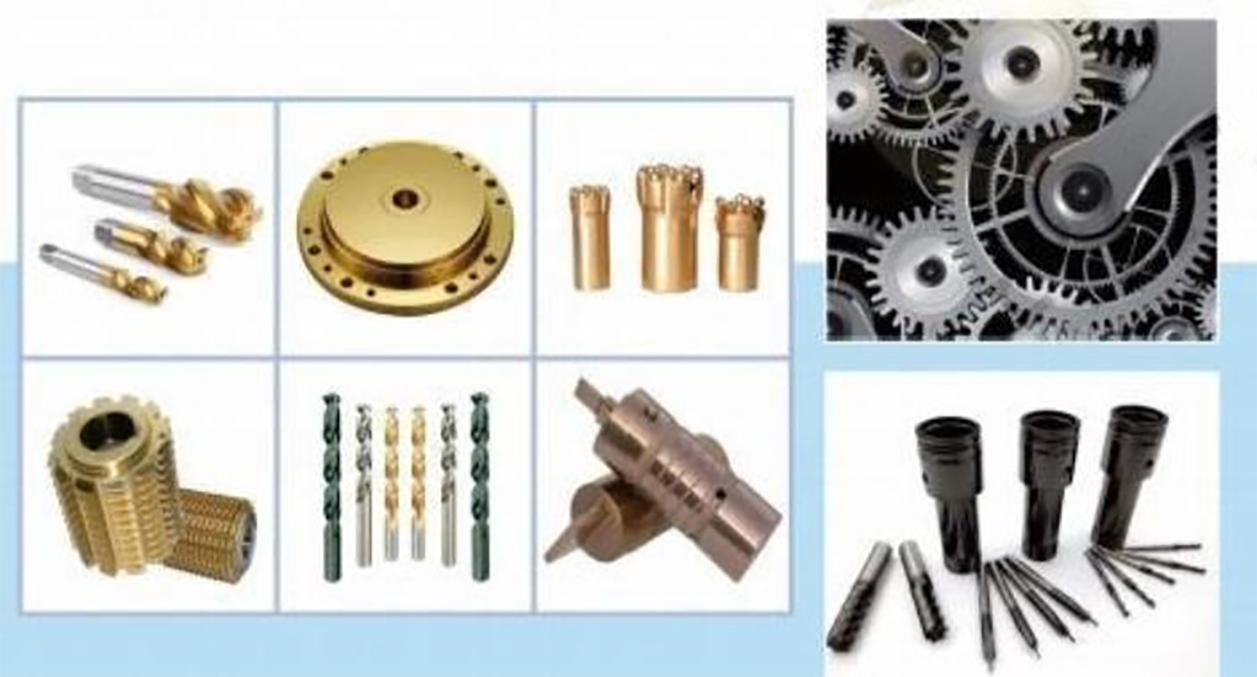

Application Scope:

This versatile system is widely applied across various sectors and component types, including:

- Mechanical Components: Cylinders, bearings, crankshafts, transmission parts, injectors, pistons, gears, screws
- Mold Industry: Die casting molds, forming molds, injection molds
- Cutting Tools: Inserts, end mills, gear hobs, drills, broaches
- DLC (Diamond-Like Carbon) Coating Applications: Automotive fuel injection systems, power transmission units, bearings, rollers, and high-speed textile machinery

Coating Materials:

The system supports deposition of a wide range of high-performance coating layers, including:

- TiN (Titanium Nitride)
- CrN (Chromium Nitride)
- AlTiN (Aluminum Titanium Nitride)
- TiCN (Titanium Carbonitride)
- TiAlCrN (Titanium Aluminum Chromium Nitride)
- TiAlSiN (Titanium Aluminum Silicon Nitride)
- DLC (Diamond-Like Carbon)
- Multilayer Hard Coatings

Designed for precision, durability, and adaptability, this cutting tool vacuum coating system provides manufacturers with a powerful solution to increase productivity, reduce tool wear, and maintain consistent performance across demanding machining environments.

Product Parameters

MATERIAL DEPOSITION TECHNOLOGY DENSITY g/cm3 Sp3% HARDNESS GPa FRICTION COEFFICIENT
DIAMOND NATURAL 3.52 100 100 0.02~0.10
a-C SPUTTERING 1.9~2.4 25 11~24 0.10~0.15
a-C:H:M REACTIVE SPUTTERING 1.9~2.4 - 10~20 0.10~0.20
a-C:H RF SPUTTERING 1.57~1.70 - 16~40 0.02~0.47
a-C,a-C:H ION BEAM 1.8~3.5 - 32~75 0.06~0.19
ta-C MAGNET FILTER 2.8~3.0 85~95 40~80 0.04~0.14
Ta-C PLD 2.4 85~95 40~80 0.03~0.15
NAMI DIAMOND PLD 2.9~3.5 75 80~100

ADVANTAGES

Uniformity

 Uniform Film Deposition Rate

Quantification

Continious Production Big Capacity

Complete Environmental

Without Any Pollution

Longlife

Singal Product Using Life Long

Easy Operation

Full Auto, Easyleanand Operate

Remote Control

Remote Checking And Inspection

Processing Application

GOLD BLINGKING INTELLIGENT TECHNOLOGY (ZHE JIANG)CO., LTD.

GOLD BLINGKING INTELLIGENT TECHNOLOGY (ZHE JIANG)CO., LTD. is well-known , located in No. 6, Sanzhou Road, Jianshan Town, Pan 'an County, Jinhua City, Zhejiang Province, China.

our company implements the one-stop service model at domestic and overseas, formulates the design scheme according to the needs of customers, as well as the process flow of equipment commissioning operation and quality control in production and operation. With high-quality after-sales service and lifelong technical guidance, we escort customers' production and development and avoid worries. The process turnkey project provides strong technical support for the development of well-known coating manufacturers at domestic and overseas. As a famous OEM PVD Tool Coating Equipment Supplier and Cutting Tools Vacuum Coating Equipment Producer, our company integrates R & D, design, production and sales, and is based on high-grade and high-end markets.

The main products are: multi arc ion coating equipment, magnetron sputtering coating equipment, bathroom hardware decoration coating equipment, optical coating equipment, glass ceramic special coating equipment, DLC tool coating equipment, etc. It is widely used in hardware sanitary ware, large furniture board, clock, mobile phone,electronic products, automobile, mold tools, various decorations and other industries.

With advanced process technology to meet the needs of environmental protection, the shortcomings of water electroplating are solved. Laws and regulations correspond to domestic and international environmental protection policies to purify water for the earth.

GOLD BLINGKING INTELLIGENT TECHNOLOGY (ZHE JIANG)CO., LTD.

Experience

30+

With 30 years of expertise

Employee

100+

More than 100 employees

Technology Precipitation, Strength Foundation.

  • Service

  • Multiformity

  • Quality

    90% of our machine parts are produced by ourselves in our own factory, so that we can control the quality, which can ensure the quality of the machines.

  • Cost

    We are machine manufactures, so we can offer the price and products directly.

  • Customization

    We have a strong R&D team, which can develop and produce according to the special needs or samples provided by customers.

The Honor
We Have Received.

Based on the development concept of "based on domestic and facing the world", the company keeps pace with the times, and is willing to join hands with domestic and foreign customers to develop together and create a better future.

  • honor
  • honor
  • honor
  • honor
  • honor
  • honor
  • honor
  • honor
  • honor

FAQ

  • 1.HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?

    We will reply to you within 12 hours of the working day.

  • 2. WHAT IS THE INFORMATION NEEDED FROM THE CUSTOMERS TO GIVE THE QUOTATION?

    The products material, colors, production capacity, machine size and so on.

  • 4. WHAT PRODUCTS CAN YOU OFFER?

    We focus on all types of vacuum coating machines.

  • 3. ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?

    We are PVD machine manufacture, we also have our own domestic and international sales department. We produce and sell all by ourselves.

  • 5. WHAT APPLICATIONS DO YOUR PRODUCTS RELATE TO?

    Mainly is used for metal, sanitary wares, big size furnitures and sheet, watch, mobile phone electrical parts, automobile, mould and tools, all decoration industries and so on.

Request A Quote

Do you have detailed questions or suggestions? We will respond to it within 24 hours from the date of receipt.

products recommended

More Information About Vacuum Coating Equipment for Cutting Tools

1. Suitable Cutting Tool Types for Vacuum Coating Equipment

Vacuum coating equipment for cutting tools is designed to enhance the performance of a wide range of tools used in modern manufacturing. Typical applications include:

  • Turning and milling tools: Carbide inserts, high-speed steel (HSS) tools, and cemented carbide end mills benefit from PVD coatings for improved wear resistance and thermal stability.
  • Drills and reamers: PVD-coated drills maintain sharpness longer, reducing breakage and improving machining efficiency.
  • Threading and tapping tools: Coatings reduce friction and prevent galling, enhancing surface finish and tool longevity.
  • Forming and shaping tools: Punches, dies, and shaping tools for metal or plastic applications achieve higher durability and lower maintenance intervals when coated.
  • Specialty and custom tools: Tools for automotive, or electronics industries, where precision and surface finish are critical, can be tailored with specific PVD coatings.

By selecting the appropriate PVD system and coating material, manufacturers can customize coatings for different tool geometries and operational requirements, ensuring good performance in demanding machining environments.

2. Advantages and Limitations of PVD Tool Coatings Compared to Traditional Coating Methods

PVD coatings offer several advantages over conventional coating methods such as chemical plating or thermal spray:

Advantages:

  • High adhesion: PVD coatings form a dense, strongly bonded film that adheres well to modern tool materials, reducing peeling or chipping.
  • Thin and uniform films: PVD films are typically in the range of 1–5 microns, preserving sharp edges and fine geometries of cutting tools.
  • Outstanding hardness and wear resistance: Materials like TiN, TiAlN, or DLC provide outstanding surface hardness and resistance to abrasion.
  • Environmentally friendly: Unlike chemical plating, PVD avoids harmful chemicals, reducing waste and regulatory compliance burdens.
  • Aesthetic and functional versatility: PVD coatings can provide color coding, reflective surfaces, or specific friction properties tailored to the application.

Limitations:

  • Thickness constraints: PVD coatings are generally thinner than thermal spray coatings and may not be suitable where extremely thick layers are required.
  • Equipment investment: High-quality vacuum coating systems require significant upfront investment and trained operators.
  • Substrate sensitivity: Some tool steels may require pre-treatment or surface preparation to achieve good coating adhesion.

PVD coatings outperform traditional methods in precision, wear resistance, and environmental compliance, although the process requires careful control and investment.

3. Performance Improvements of PVD Coated Tools

PVD coatings significantly enhance cutting tool performance in several key areas:

  • Extended tool life: Dense and adherent coatings reduce wear and prevent edge chipping, allowing tools to operate longer between replacements.
  • Increased hardness: Coatings such as TiN, TiAlN, or DLC significantly increase surface hardness, improving cutting efficiency and precision.
  • Improved wear resistance: Abrasion, friction, and adhesive wear are minimized, reducing downtime and machining defects.
  • Enhanced corrosion resistance: PVD films act as a protective barrier against moisture, coolants, and chemical exposure, maintaining tool integrity in harsh environments.
  • Reduced friction and heat generation: Coatings lower the coefficient of friction between the tool and workpiece, minimizing heat buildup and preserving tool geometry.

These improvements translate into higher productivity, reduced tool replacement costs, better surface finishes, and reliable machining outcomes, particularly in high-speed, high-precision, or high-temperature operations.

Vacuum coating equipment for cutting tools provides a high-performance solution for modern manufacturing by enabling PVD coatings that enhance hardness, wear resistance, corrosion protection, and operational lifespan. The technology is compatible with a wide variety of tool types—from drills and milling cutters to punches and dies—and delivers distinct advantages over traditional chemical or thermal coatings.
