Large Scale Multi Arc Vacuum Coating Equipment with Pulsed Bias

1. Differences Between Large-Scale Multi-Arc Ion Plating Equipment and Conventional PVD Systems

Large-scale multi-arc ion plating (MAIP) equipment is a specialized type of PVD system designed to deposit thick, dense, and highly adherent coatings on large metal or composite substrates. The main distinctions compared to conventional PVD equipment include:

• Deposition mechanism: While standard PVD typically relies on thermal evaporation or magnetron sputtering, multi-arc ion plating uses an electron arc to vaporize cathode material, generating a high-density plasma. The vaporized atoms are ionized and accelerated toward the substrate, forming a strongly bonded, dense coating.
• Film properties: Multi-arc ion plating produces harder, denser, and more wear-resistant coatings than conventional PVD, making it ideal for applications requiring durability and long-term performance.

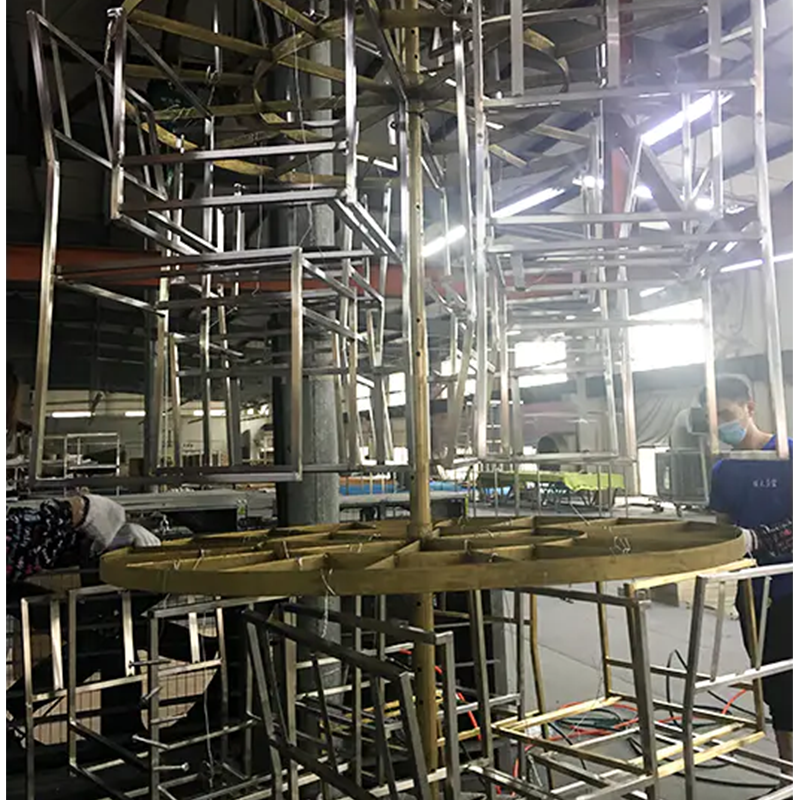

• Scale capability: Large MAIP systems can handle full-size furniture panels, stainless steel sheets, or architectural components, which would be challenging for smaller PVD systems.

The multi-arc ion plating combines high deposition rate, outstanding film density, and large-area coverage, offering a significant advantage over standard PVD methods for industrial applications.

2. Customization of Large-Scale PVD Machines for Furniture and Stainless Steel Panels

Manufacturers seeking custom PVD solutions for furniture or stainless steel sheets can typically work closely with suppliers to design equipment that meets specific size, throughput, and coating requirements.

Key considerations and steps in the customization process include:

• Initial consultation: The manufacturer evaluates substrate dimensions, production volume, desired coating type, and performance requirements.

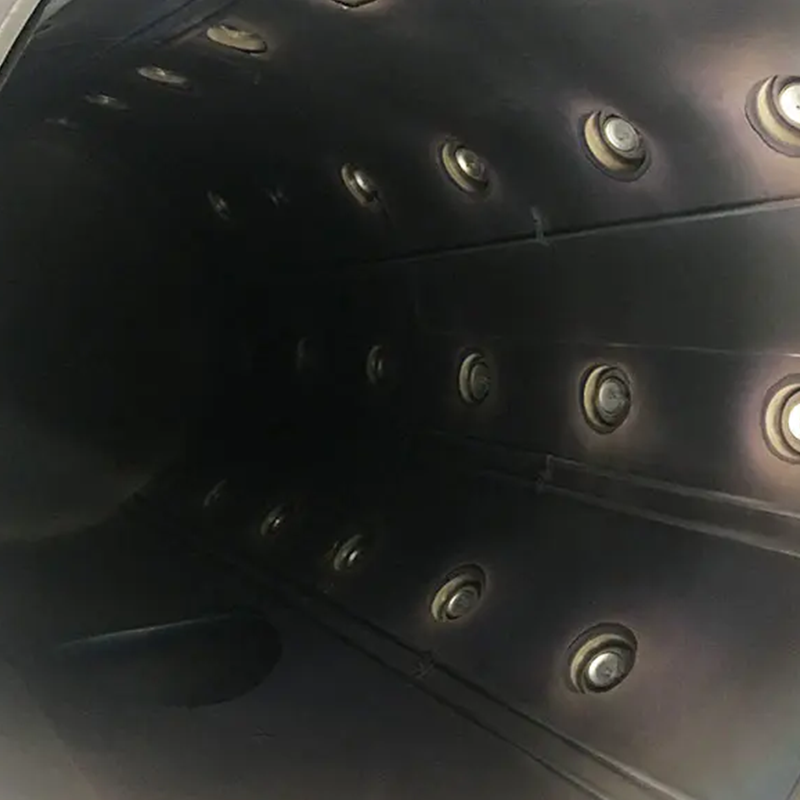

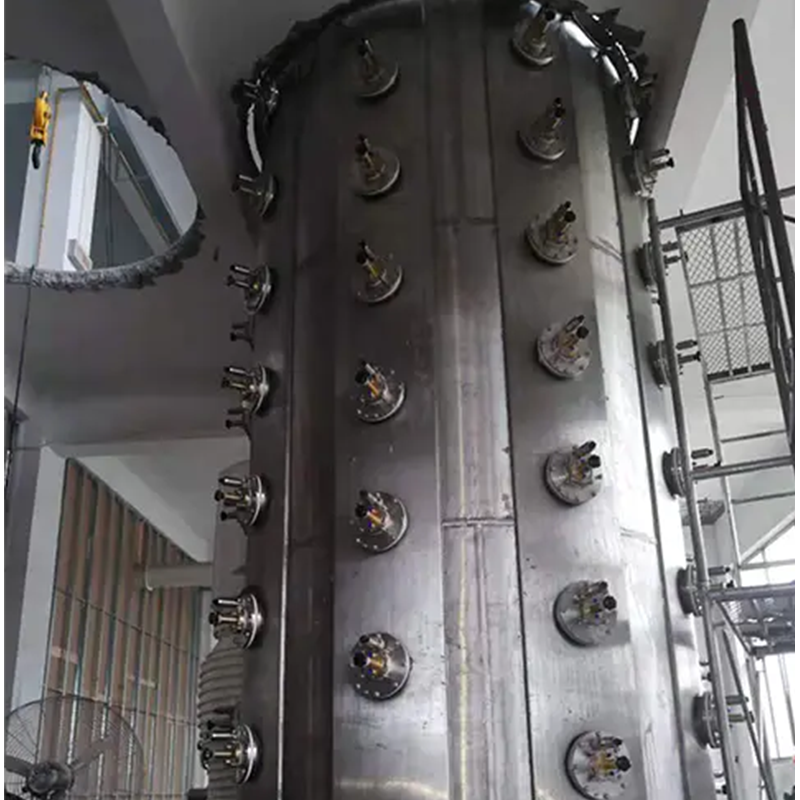

• System design: The supplier proposes a tailored chamber, cathode arrangement, substrate handling, and process control systems optimized for the application.
• Prototype and testing: Small-scale or pilot tests may be conducted to validate coating uniformity, adhesion, and color before finalizing the machine design.
• Production and delivery: Once specifications are confirmed, the equipment is fabricated, assembled, and tested at the supplier's facility.
• Installation and commissioning: The system is installed on-site, and engineers assist with initial operation, process optimization, and training.
• Typical timeline: Depending on complexity, custom large-scale PVD equipment generally requires 3–6 months from initial consultation to final commissioning.

This collaborative approach ensures that the machine is fully optimized for the client's substrate size, material, and decorative or functional requirements, enabling high-quality, repeatable coatings.

3. Corrosion and Scratch Resistance of PVD-Coated Stainless Steel Panels

PVD coatings on stainless steel panels provide significant improvements in both corrosion and mechanical resistance:

• Corrosion resistance: PVD films form a dense, adherent barrier that protects the underlying stainless steel from moisture, salts, and chemical exposure. Combined with the substrate's inherent stainless properties, this results in long-lasting protection against rust and surface degradation.
• Scratch and wear resistance: Multi-arc ion plated coatings are hard and dense, making them highly resistant to scratching, abrasion, and everyday mechanical wear. This is particularly valuable for furniture, decorative panels, and high-touch surfaces.

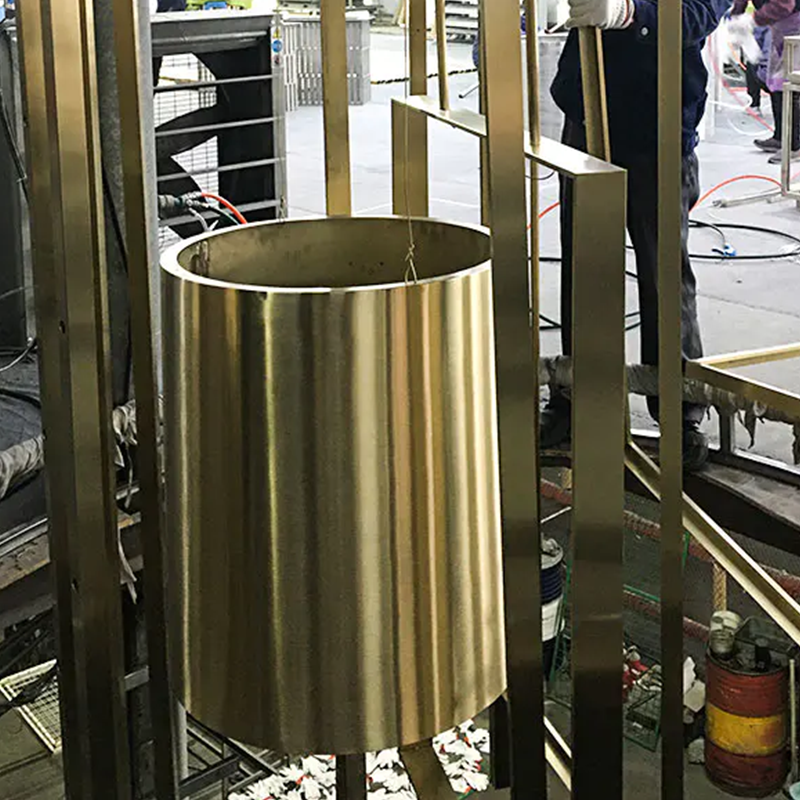

• Additional benefits: PVD coatings maintain color stability, gloss, and aesthetic appeal over time, even in demanding indoor or outdoor environments. Protective top layers or multilayer structures can be applied to further enhance durability and chemical resistance.

By combining substrate quality and high-performance PVD coatings, manufacturers can achieve stainless steel panels with both outstanding appearance and long-term functional durability.

Large-scale multi-arc ion plating PVD equipment represents a significant advancement over conventional vacuum coating systems, providing outstanding film density, hardness, and uniformity across extensive surfaces. For manufacturers of furniture, stainless steel panels, or architectural components, these machines not only ensure outstanding corrosion and scratch resistance, but also deliver consistent aesthetic quality and functional performance.

By investing in high-quality, custom-designed PVD equipment, businesses can achieve greater production efficiency, reduced material waste, and long-term operational reliability, while meeting modern demands for environmentally responsible and high-performance coatings. Ultimately, such systems enable manufacturers to maintain a competitive edge, produce premium products, and confidently meet both industrial and decorative coating standards.
