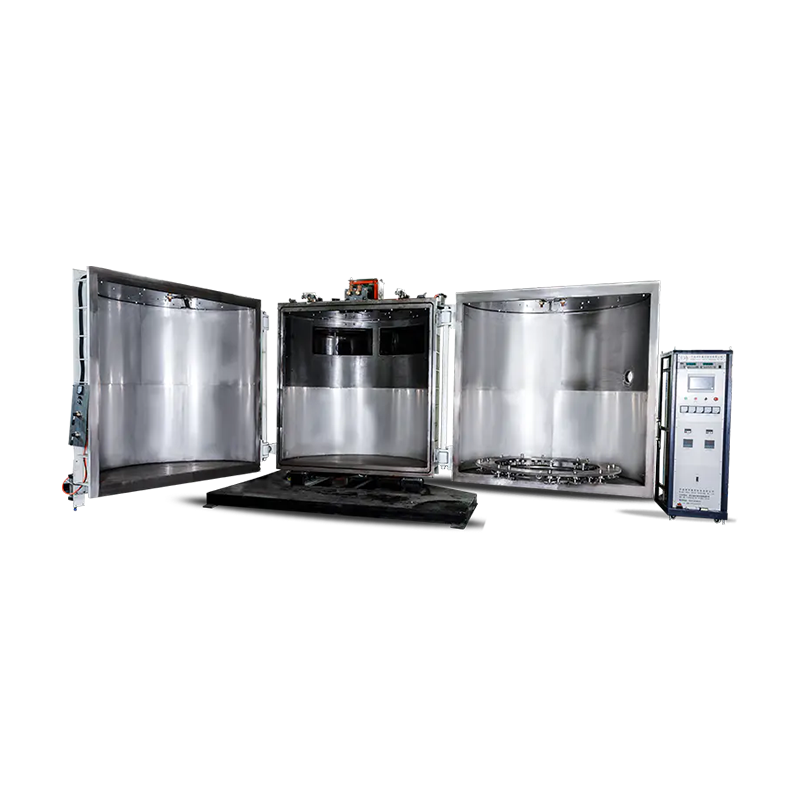

Horizontal Vacuum Evaporation Coating Equipment for Plastic Products

1. Process Flow of Vacuum Evaporation Coating

Vacuum evaporation coating is a physical vapor deposition (PVD) process where material is vaporized in a vacuum and deposited onto a substrate to form a thin film. The typical process flow includes several critical steps:

• Substrate preparation: The substrate must be thoroughly cleaned to remove oils, dust, and oxides. Methods such as ultrasonic cleaning, solvent washing, or plasma cleaning are commonly used. Surface preparation ensures good adhesion and film uniformity.

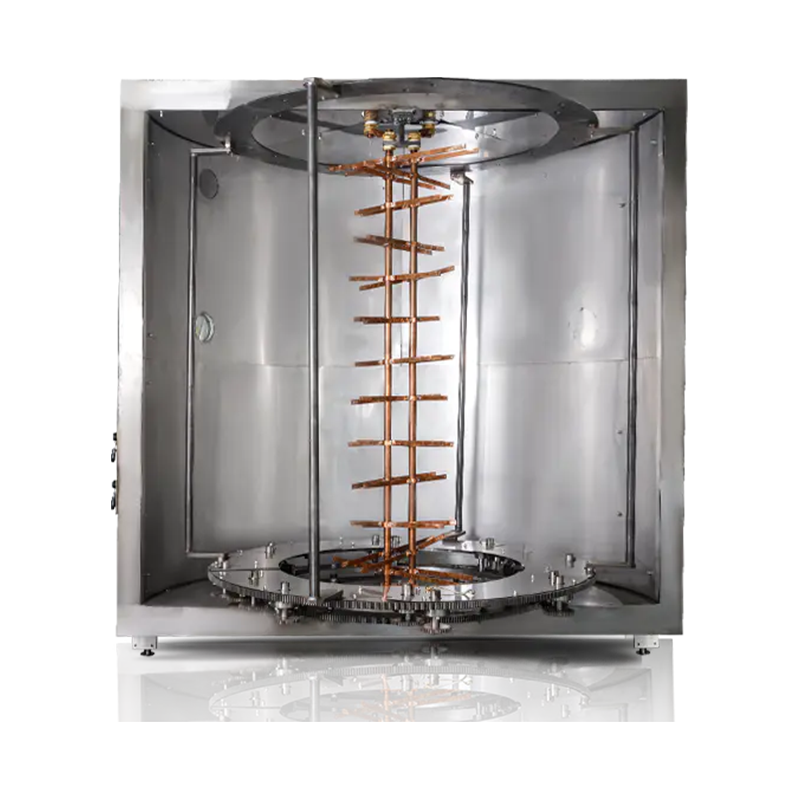

• Chamber loading and fixturing: Substrates are carefully mounted on holders or rotating fixtures. Proper positioning minimizes shadowing and allows uniform exposure to the vapor flux.
• Vacuum pumping: The chamber is evacuated to a high vacuum (usually 10⁻⁴ to 10⁻⁶ Torr). Achieving a stable vacuum reduces contamination and allows free travel of vapor atoms toward the substrate.
• Material vaporization: The coating material is heated using resistive, electron-beam, or thermal filament methods until it vaporizes. The vapor travels in a straight line through the vacuum toward the substrate.
• Deposition and film growth: The vapor condenses on the substrate, forming a thin film. Substrate rotation or movement is often applied to improve uniformity. Deposition parameters such as rate, temperature, and thickness are carefully controlled.
• Cooling and venting: After the desired thickness is achieved, the vapor source is turned off, the chamber is cooled, and it is gradually vented to ambient pressure. The coated substrates are then removed for inspection or further processing.

This sequence ensures high-purity films with controlled thickness and optical or functional properties, suitable for industrial, decorative, or optical applications.

2. Ensuring Film Uniformity, Adhesion, and Optical Performance

Maintaining high-quality film characteristics during vacuum evaporation requires attention to several key factors:

• Substrate motion: Rotating, tilting, or oscillating the substrate during deposition helps minimize thickness variation and shadowing, especially on complex shapes.
• Evaporation rate control: Consistent and well-monitored heating of the source material prevents fluctuations in deposition rate, ensuring uniform film growth.
• Chamber geometry and placement: The distance between the source and substrate, as well as the arrangement of multiple sources if used, affects vapor distribution and coating uniformity.
• Surface preparation: Proper cleaning and pre-treatment of the substrate improve adhesion and reduce the likelihood of delamination or defects.
• Process environment control: Maintaining stable vacuum levels and minimizing contamination (e.g., residual gases or particulates) preserves optical clarity and film consistency.
• Material purity and evaporation method: High-purity source materials and controlled vaporization methods prevent defects such as inclusions, pinholes, or uneven coloration in decorative and optical coatings.

By carefully controlling these factors, manufacturers can achieve uniform, adherent, and optically precise coatings, suitable for applications ranging from lenses and mirrors to decorative metallic films.

3. Maintenance and Care of Vacuum Evaporation Equipment

Proper daily maintenance and preventive care are essential to ensure reliable operation and extend the service life of vacuum evaporation systems:

• Chamber cleaning: Regularly remove deposited material from the chamber walls, shields, and fixtures to prevent contamination and maintain vacuum integrity.
• Source inspection: Check filaments, crucibles, and electron beam components for wear or buildup. Replace worn parts to maintain consistent deposition rates.
• Vacuum system upkeep: Inspect pumps, seals, and vacuum lines. Change oil in mechanical pumps, clean cold traps, and ensure proper operation of diffusion or turbomolecular pumps.
• Cooling system monitoring: Verify that water or air cooling circuits are functioning correctly to prevent overheating of the source or chamber components.
• Electrical and control system checks: Inspect wiring, interlocks, and control panels for proper operation. Ensure that sensors and deposition monitors are calibrated for accurate thickness control.
• Operator training: Personnel should be trained to follow safe operating procedures, avoid contamination, and recognize early signs of equipment malfunction.
• Scheduled preventive maintenance: Follow manufacturer guidelines for major maintenance intervals, including chamber bakeouts, pump servicing, and fixture inspections.

Adhering to these maintenance practices ensures consistent coating quality, reduces downtime, and prolongs the operational life of vacuum evaporation equipment.
